The 13 - XIII

Smooth and powerful. The higher Output Humbucker that is both Vintage and Modern at the same time. Over wound with an increased DC resistance, and the very powerful Alnico 8 magnet the pickup hits the amp hard but the high end is beautiful and clear without being shrill.

Wound on an antique winding machine and using tuned Alnico Magnets, built around exclusive custom pole screws, precision milled parts and select grade steel for all the components. Every pickup is meticulously assembled by hand. Each pickup is individually Serial Numbered and engraved with the Arcane Inc. logo on the base plate.

Comes with the Arcane Inc. packaging consisting of a hand written labeled box, a cloth bag, Arcane Inc. sticker, screws and springs included.

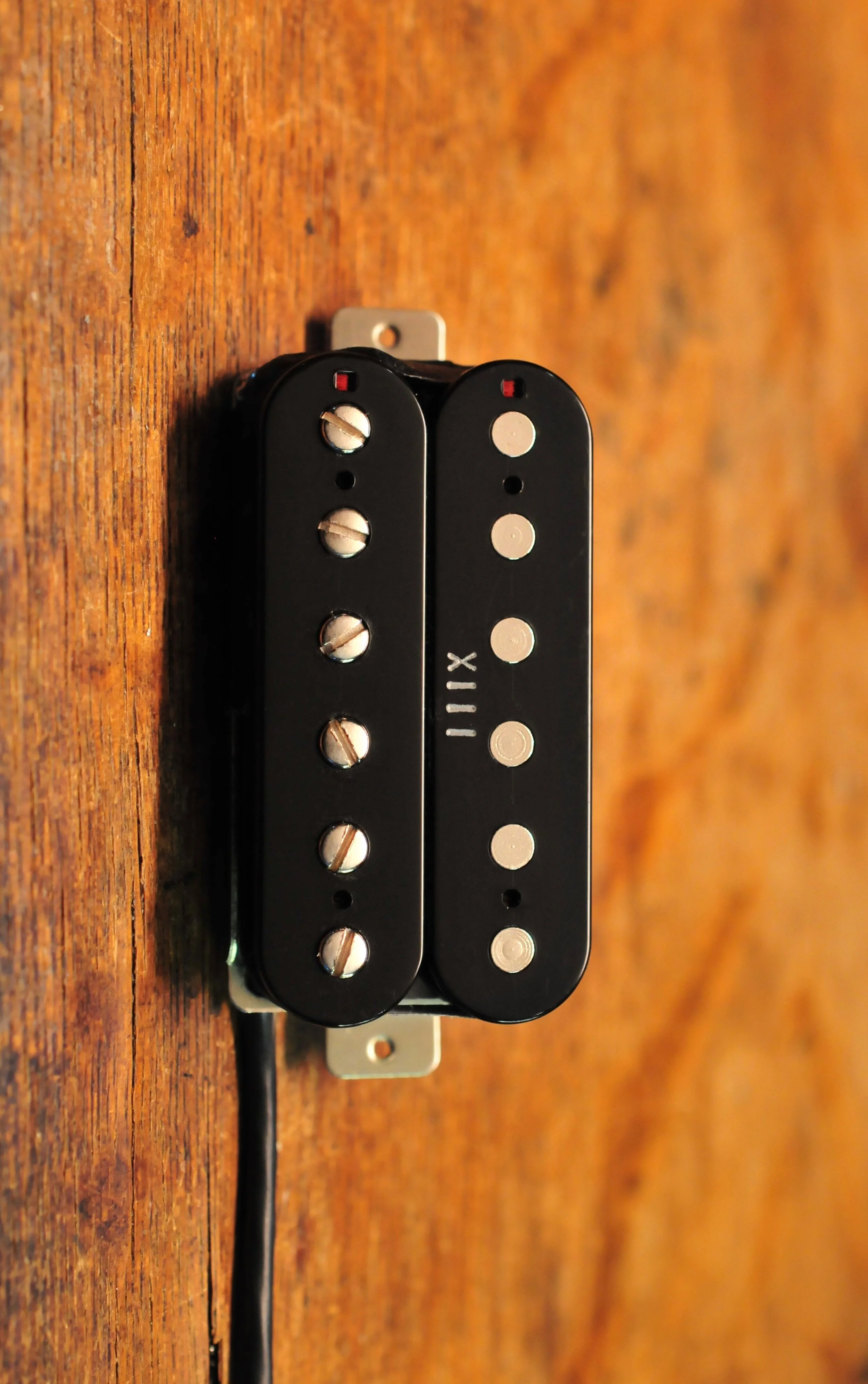

Options: Vintage style two conductor or 4 conductor lead wire if you intend to split this pickup. These pickups are available without a cover in black or zebra, with a cover in nickel, brushed nickel or aged nickel.

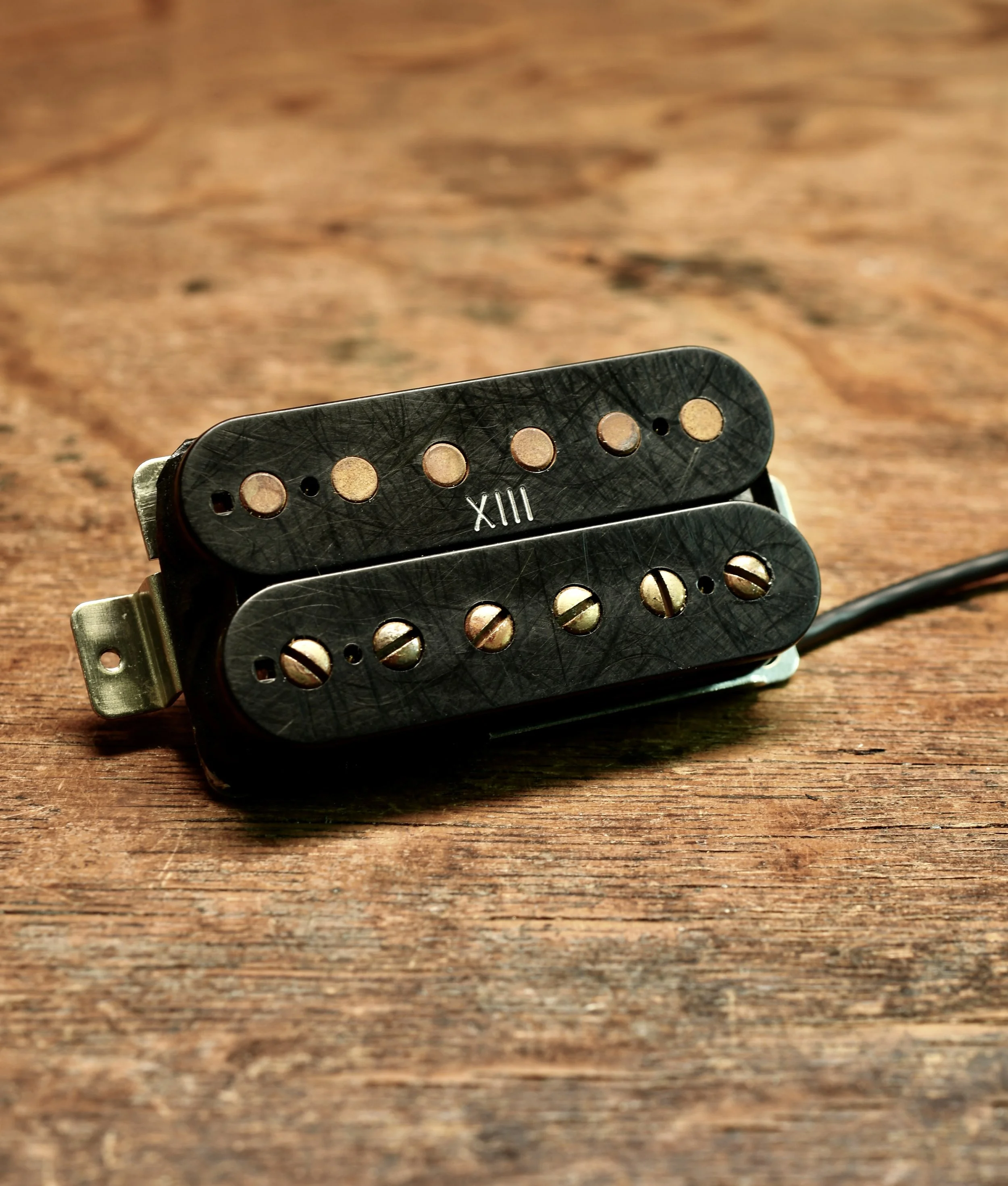

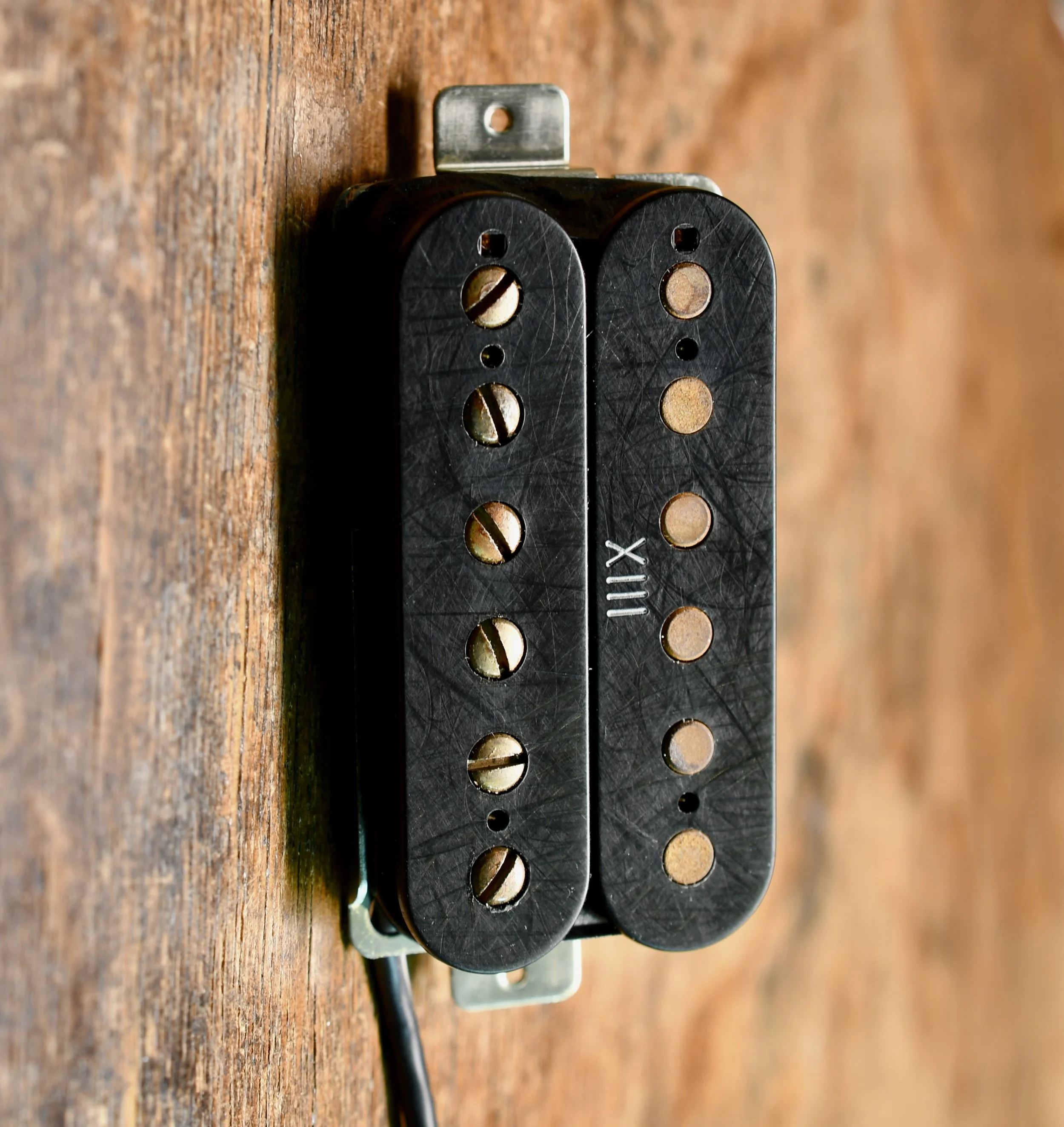

XIII Engraving on uncovered humbuckers:  The pickups come standard with this engraving on the bridge pickup, not on the neck if ordered as a set of two.  This is optional, you can request plain non engraved when ordering if you prefer.

They are sold individually or as a matched set.

Bridge: DC Resistance 13.5 K

Neck: DC Resistance 8.1k Alnico 5

Neck: Works well with the Triple Mod Neck DC Resistance 8.2k or the 57 Experience neck DC Resistance 7.8k

Wiring Code:

2 Conductor: Braided Shield - Ground Black - Hot

4 Conductor: Black – Hot Green and Bare – Ground Red and White – Soldered and Isolated

Coils: Green and Red – Screw Coil Black and White - Slug Coil

Standard Spaced: 1 15/16” inch - 49.2mm (Tune O Matic or Wrap Around Bridges Gibson Spaced)

Trem Spaced: 2 1/16” inch - 53mm (Tremolos, Hard Tail Bridges Fender Spaced)

No Cover $150

Nickel Cover $154

Uncovered Aged $160

Distressed Cover $174

Engraved Cover $185

Shipping 1 to 3 weeks depending on inventory. These are hand made products, please be patient.
