DOOM

DOOM

from $149.00

Doom

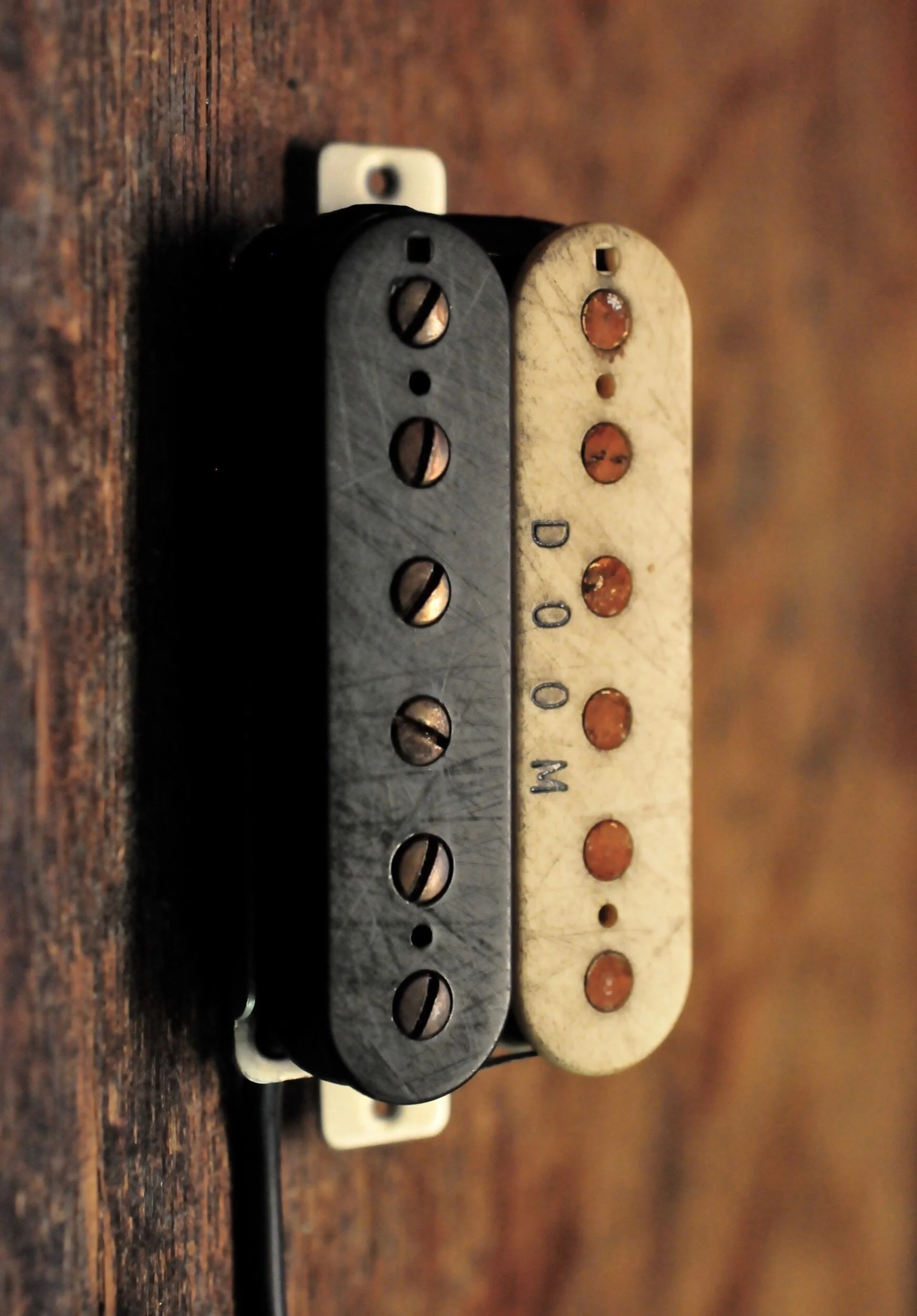

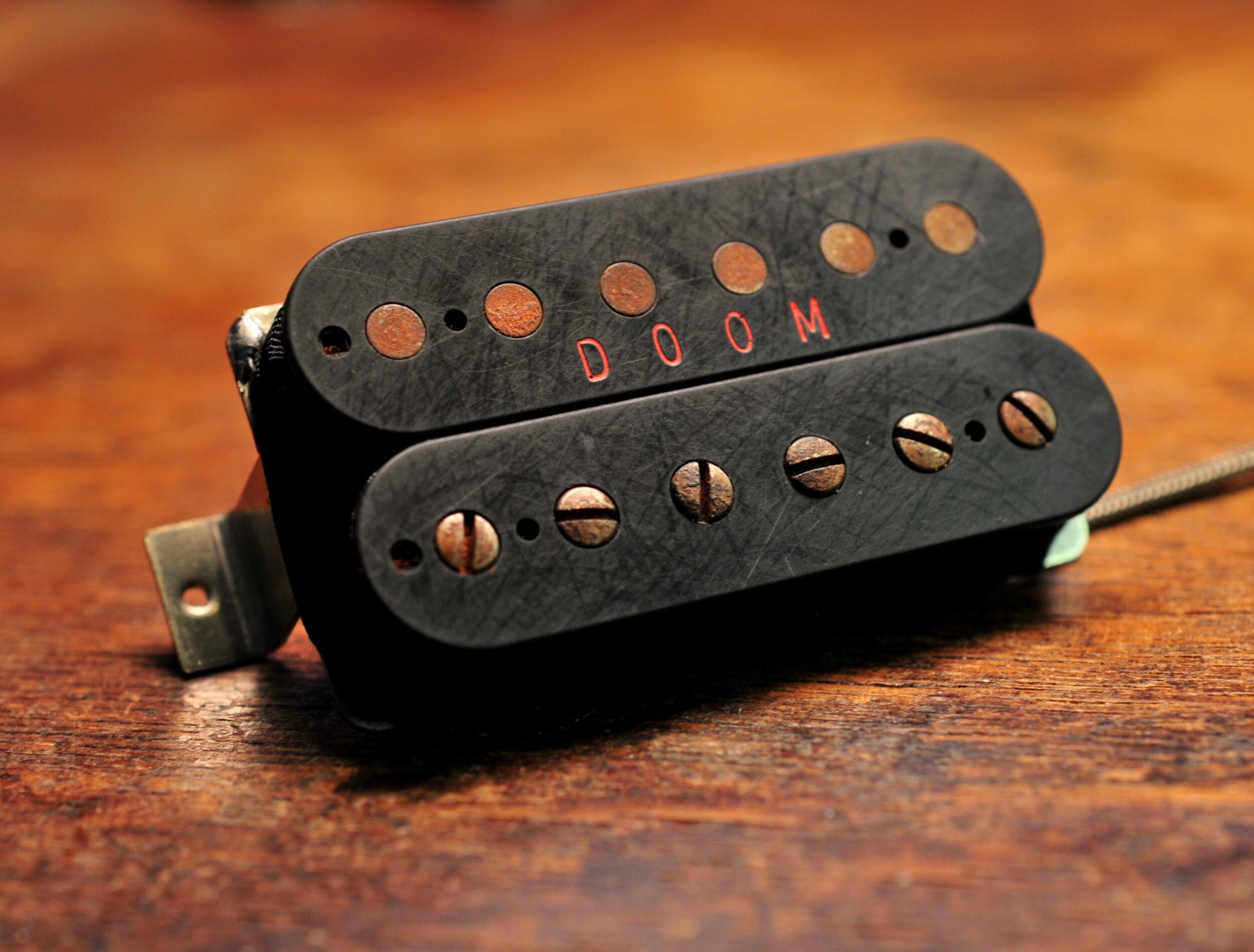

The DOOM Humbucker: Pre Historic Tones from the sub basement of hell, built for DOOM, Sludge, Stoner rock and metal.  This high Output Humbucker is over wound with a high DC resistance and the Alnico 8 magnets hit the amp hard without being harsh. Great for extreme overdriven sounds, this model also splits well.

The WarTorn finish and DOOM engraving give the pickup a unique look that lets you know this pickup has been somewhere and done something.

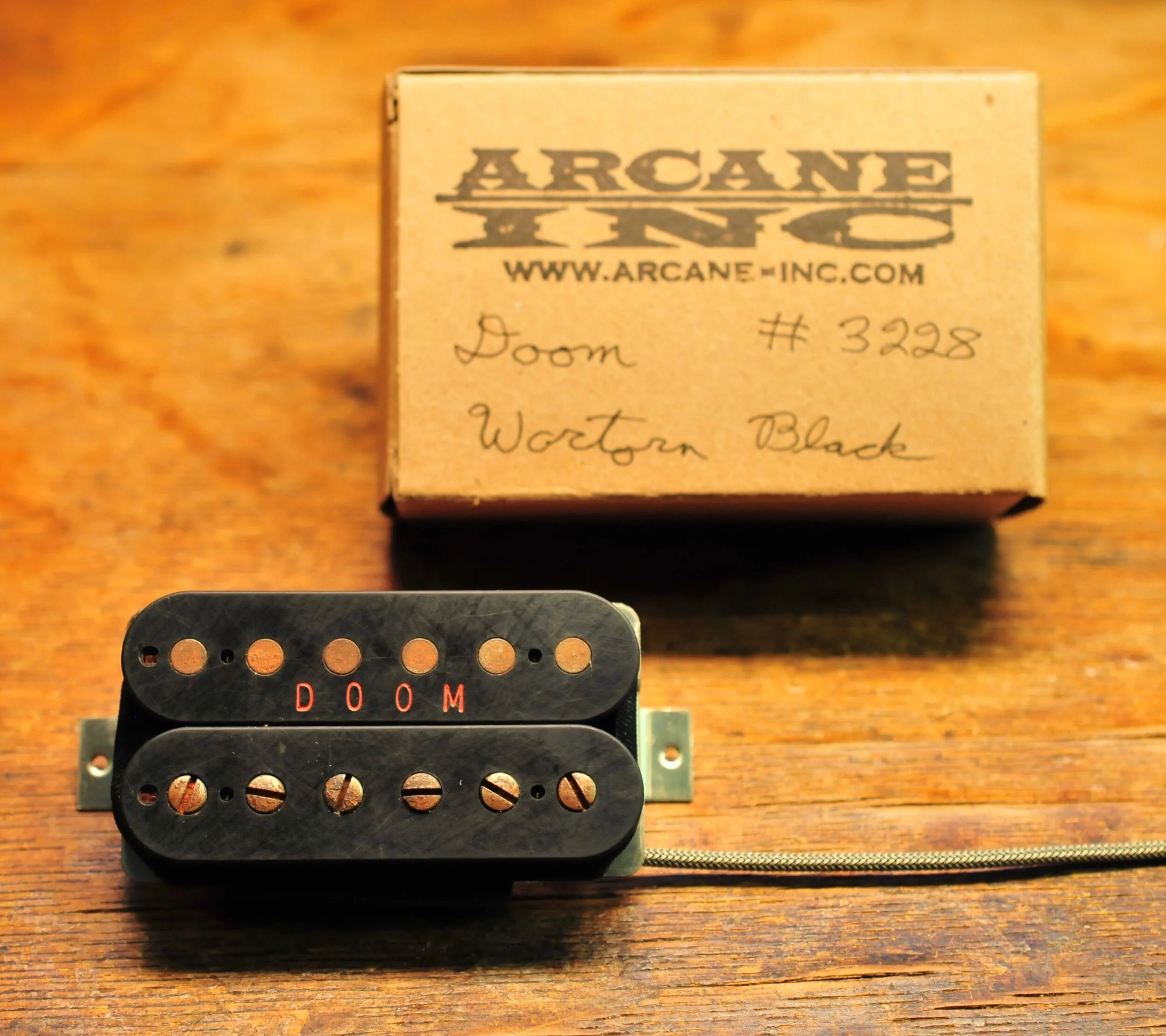

Wound on an antique winding machine and using tuned Alnico 8 Magnets, built around exclusive custom pole screws, precision milled parts and select grade steel for all the components. Every pickup is hand assembled with precision. Each pickup is individually Serial Numbered and engraved with the Arcane Inc. logo on the base plate.

Options: Vintage style two conductor or 4 conductor lead wire if you intend to split this pickup.

They are sold individually or as a matched set.

Bridge: DC Resistance 18.5 K

Neck: Works well with the Triple Mod Neck DC Resistance 8.2k or the 57 Experience neck DC Resistance 7.8k

Wiring Code:

2 Conductor:

Braided Shield - Ground

Black - Hot

4 Conductor:

Black – Hot

Green and Bare – Ground

Red and White – Soldered and Isolated

Green and Red – Screw Coil

Black and White - Slug Coil

Standard Spaced: 1 15/16” inch - 49.2mm (Tune O Matic or Wrap Around Bridges Gibson Spaced)

Trem Spaced: 2 1/16” inch - 53mm (Tremolos, Hard Tail Bridges Fender Spaced)

No Cover $144

Nickel Cover $149

WarTorn No cover: $160

Distressed Cover $169

Engraved Distressed Nickel $185

Shipping 1 to 3 weeks depending on inventory.  These are hand made products, please be patient.
